'GAB49152
Max-Air? Shock Absorbers: Air Adjustable Shocks

Ideal for vehicles that occasionally haul heavy loads or tow trailers
Large-volume air chamber inflates up to 150 psi with vehicle loaded, and deflates for normal driving.
A pair can maintain ride height when up to 1,100 lbs. of additional weight is loaded.
Can be adapted for most vehicles equipped with automatic leveling systems.

The Max-Air? shock absorber is ideal for vehicles that haul heavy loads or tow trailers. Designedto maintain level vehicle height, they can be inflated or deflated as needed...from 20 psi to 150 psi with the vehicle loaded.

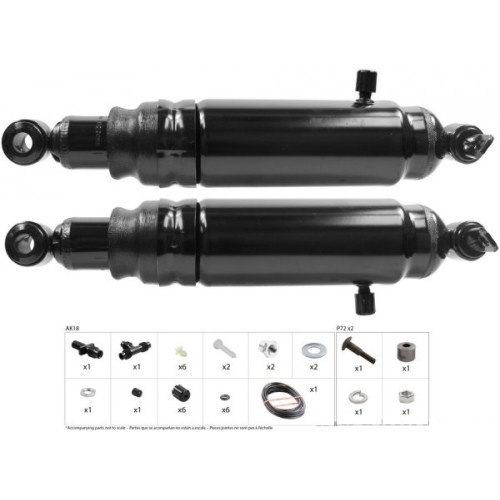

Packed in pairs that include air line, air fittings, and air fill kit.

Capacity is limited by vehicle suspension, tires and transmission. See vehicle owner s manual for details.


Upper Mounting Code: Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length(Hole Center to Center)
Lower Mounting Code: L1/CP4
Compressed Length: 12.625"
Extended Length: 20.750"
Travel Length: 8.125"
Dust Shield: Yes
Parts Pack(s): (2) P72
Extended Hydraulic Lockout: No
Extended Bumper Stop: No
'
