'0.20 Överdimension
'
| Specifications | ||
|---|---|---|
| Component No. | MB-2508P | MB-2509P(F) |
| Positions | 1-2-3 | 4 |
| Material | TM-77 | TM-77 |
| Min. Std. Shaft Diameter | 2.4483IN | 2.4478IN |
| 62.1868MM | 62.1741MM | |
| Max. Std. Shaft Diameter | 2.4493IN | 2.4488IN |
| 62.2122MM | 62.1995MM | |
| Min. Vert. Oil Clearance | 0.0006IN | 0.0011IN |
| &nbs; | 0.0152MM | 0.0279MM |
| Max. Vert. Oil Clearance | 0.0036IN | 0.0041IN |
| 0.0914MM | 0.1041MM | |
| Max. Wall | 0.0955IN | 0.0955IN |
| 2.4257MM | 2.4257MM | |
| Min. Brg. O.D. or Housing Bore | 2.6406IN | 2.6406IN |
| 67.0712MM | 67.0712MM | |
| Max. Brg. O.D. or Housing Bore | 2.6416IN | 2.6416IN |
| 67.0966MM | 67.0966MM | |
| Max. Length | 0.8070IN | 1.7180IN |
| 20.4978MM | 43.6372MM |
'

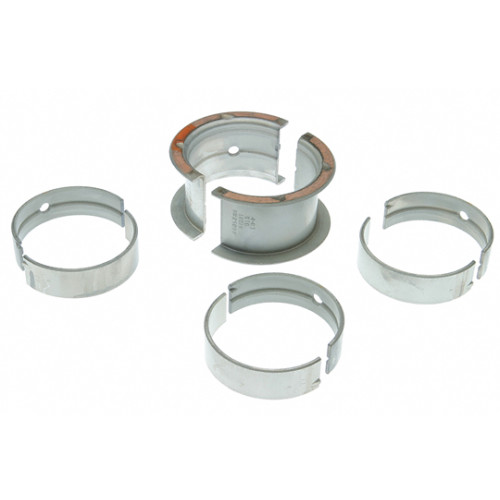

RAMLAGER 4,3/CHEV,8502
- Tillverkare: MAHLE CLEVITE INC
- Artikelnummer: MIC MS-1454P20
- Tillgänglighet: 2
-
1 118.75 kr
- Exkl moms: 895.00 kr
